ANALYTICAL LABORATORY EQUIPMENT

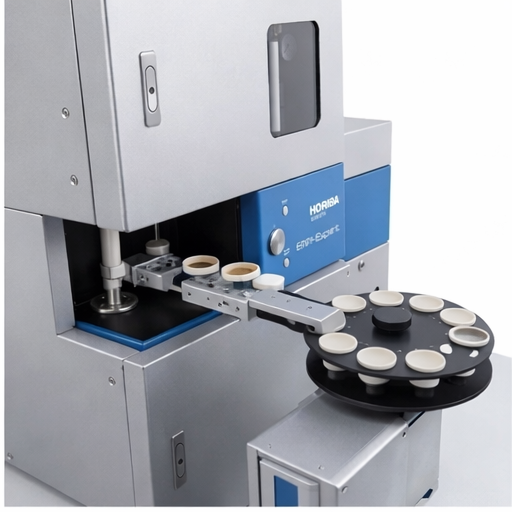

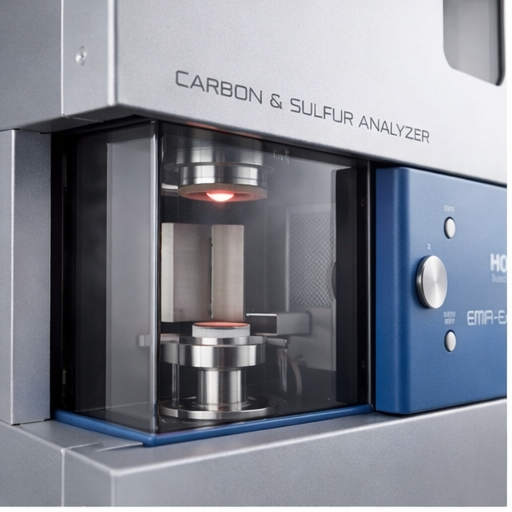

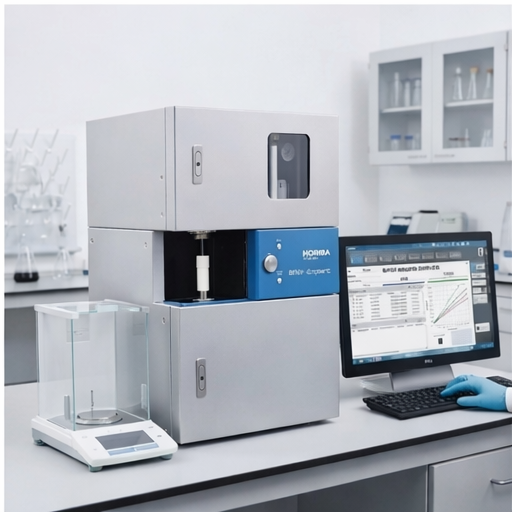

EMIA-Expert
Carbon/Sulfur Analyzer (Flagship High-Accuracy Model)
The EMIA-Expert is a high-precision carbon and sulfur analyzer designed for advanced materials analysis. It offers wide detection ranges, rapid measurement cycles, and robust automation featuresβmaking it ideal for quality control and research in steel, alloys, non-ferrous metals, ceramics, and other industrial materials.
Wide Measurement Capability
High-Speed Operation
User-Friendly Interface
Durable & Reliable
Typical Measurement Time
70 seconds/cycle
Required Sample Amount
1g Β± 0.1g
Analysis Type
Carbon, Sulfur
Technical Specifications
Required Sample Amount
1g Β± 0.1g
Typical Measurement Time
70 seconds/cycle
Carbon
Measurement Range
0.6 ppm - 10.0%
Blank Accuracy
Οn-1 β€ 0.3 ppm
Sulfur
Measurement Range
0.6 ppm - 1.0%
Blank Accuracy
Οn-1 β€ 0.3 ppm
Utility
Carrier Gas
Oxygen (99.5%, 0.3β0.33 MPa)
Operation Gas
Nitrogen (99.5%, 0.35β0.38 MPa)
Power
200/220/240V, 50/60Hz, 5kVA
Dimensions
Main Unit
500 Γ 725 Γ 710 mm
Purifier Unit
160 Γ 560 Γ 512 mm
Mass
Main Unit
~134 kg
Purifier Unit
~21 kg
Data Processing
System
USB with PC (Windows 8.1), Touch panel / Keyboard
Model Name
Variants
EMIA-20E: Carbon/Sulfur
EMIA-21E: Carbon
EMIA-22E: Sulfur
EMIA-21E: Carbon
EMIA-22E: Sulfur
Note: "ppm" is equal to mg/kg.
*Except piping parts, projection parts (D:79mm) and flow meter on the back side.
